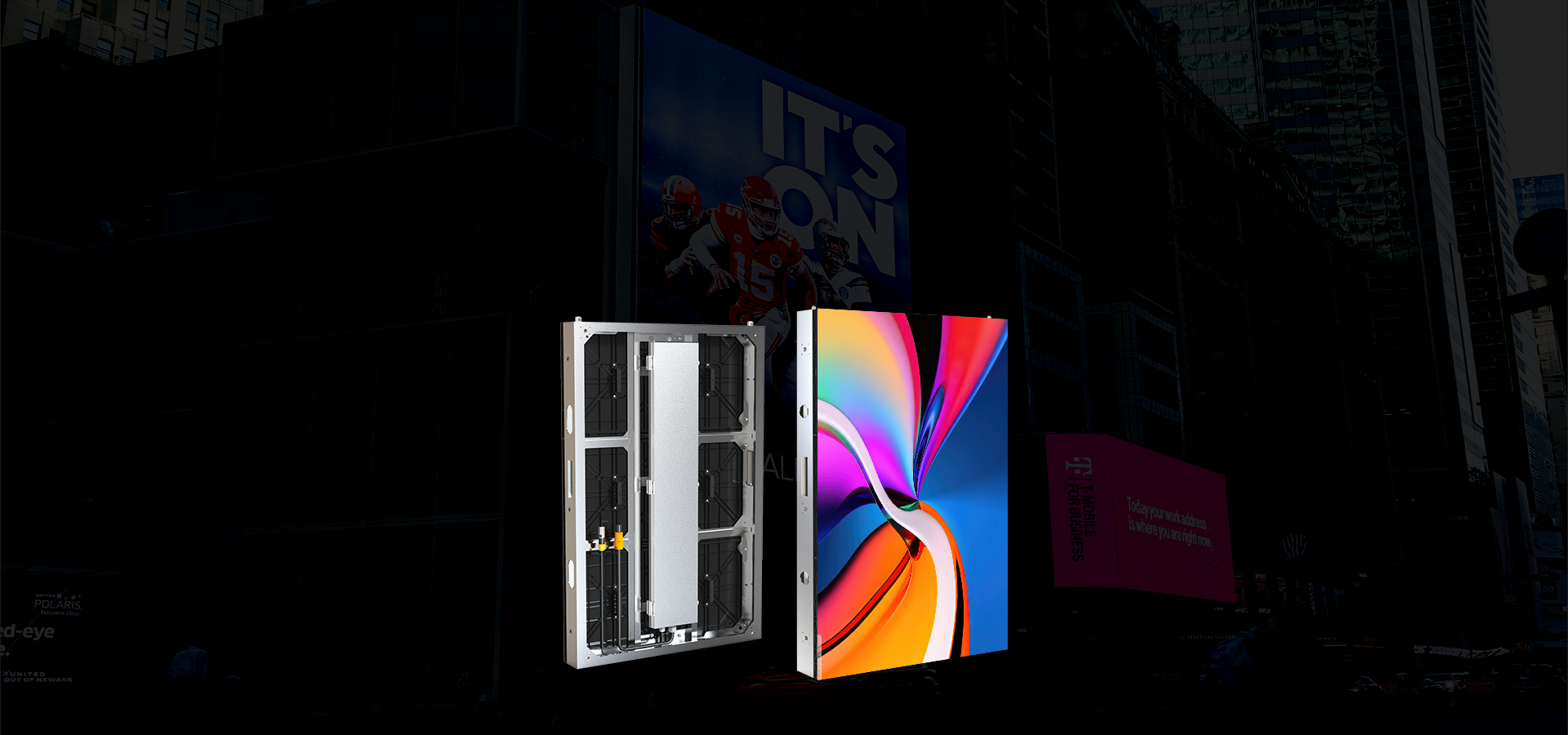

Front Service Outdoor LED Display Screen 640×960 Series

Ultra-Thin & Light Weight Front Service Energy Saving LED Video Screen
VIDEO
IP68 Waterproof Front Service Outdoor LED Display Screen P6 P8 P10 Same Size 640x960mm, Different Weight

15.3kg/panel, less than 25Kg/m2

20201013030559297

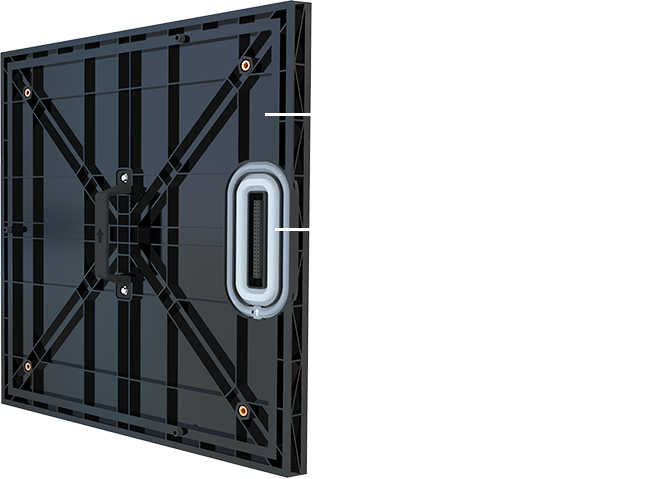

Module Waterproof Design

High IP65 waterproof rating; Rubber ring waterproof design; Triangular reinforcement design

20201013030608474

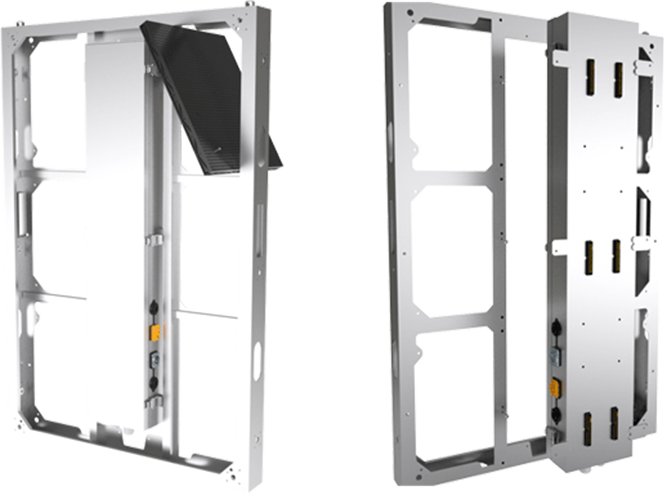

Outdoor Waterproof Front Service Energy Saving LED Screen Full Front and Rear Maintenance

Indoor and Outdoor Front-Service LED Video Wall Displays Module front and rear maintenance System box front and rear maintenance

20201013032329941

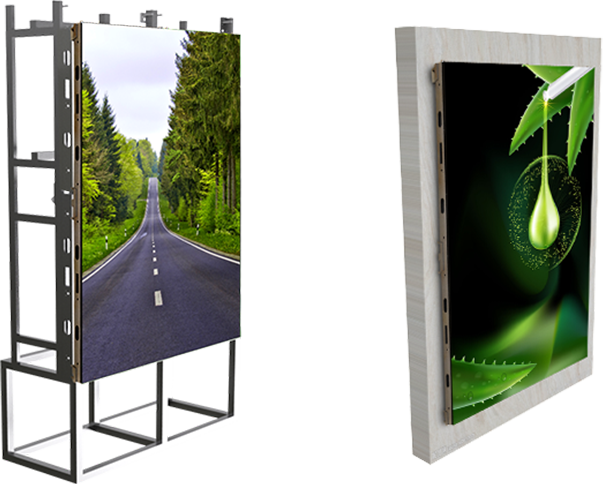

Front and Rear Installation

Stacking installation; Wall mounting without steel structure; Wall mounting with steel structure

20201013031343676
20201013031357689
A Series
SPECIFICATIONS
Model LM-A6 ( P6.67) LM-A8  ( P8 ) LM-A10 ( P10 )
Pixel Pitch (mm) 6.67mm 8mm 10mm
LED Lamps Nationstar LED Gold Wire Nationstar LED Gold Wire Nationstar LED Gold Wire
Brightness（nits） 6500 7500 8500
Refresh Rate（hz） ≥3840 ≥3840 ≥3840
Cabinet Size(mm) 640*960 640*960 640*960
Cabinet weight(kg) 15.3 per panel 15.3 per panel 15.3 per panel
Cabinet Material Aluminum Alloy Aluminum Alloy Aluminum Alloy
Power Consumption(Max/Aver.)w/㎡ 760/310 850/380 1000/400
Cabinet Resolution Pixels 96*144 80*120 64*96
Pixel Density Pixels(㎡) 22477 15625 10000
Maintenance Type Front or Rear
Note: For more product materials, please contact us directly.
LeemanLED has more than 25 years of experience manufacturing Fixed LED Displays & Rental LED Screens for INDOOR and OUTDOOR purposes.
Due to the modular system, our LED Video Wall Screens can adapt to many applications: Churches, Retail, Education, Rental Companies, Events, TV Studios, AVP, and many other visual experiences.
