P2.6-5.2 Transparent LED Poster Screen Advertising
Transparent LED Poster Display
Product introduction |
Transparent car back window LED display is an in-vehicle Portable LED Sign. Comparing to traditional LED screens, the transparent LED screen is more creative in displaying content. As the vehicle moving on the road, the advertising will be appreciated potentially. It won’t block out light or the view on both sides. This allows the driver to see tra.
Cabinet Material：To avoid collisions from the outside environment, LEEMAN LED designed an acrylic surface to protect the transparent car back window LED display.The energy-saving driven IC integrated to achieve lower power consumption.
Application：It is widely applied in building glass, shop windows, car showrooms, etc.
High Transparency > 85%
Around 85%. The high transparency will not block out light or view on both interior and exterior sides. It will not affect the driver’s observation of the traffic behind the car.

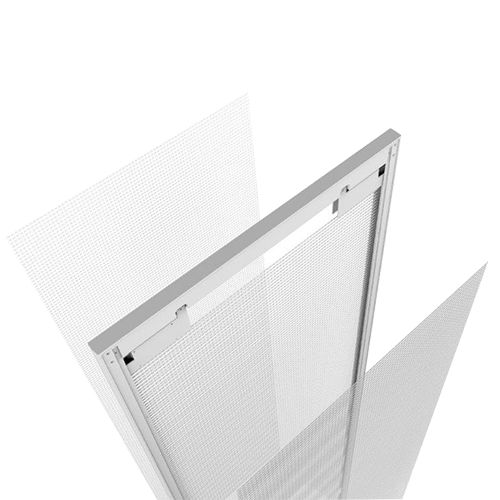

Ultra-slim frame and Ultra-lightweight
Glass wall transparent belongs to the customized LED display cabinet series, the strip length can be customized according to the building structure.
High Brightness > 5,000 nits
With the high brightness up to 5000nits. The contents showing on the transparent LED screen is able to be vivid even under strong sunlight. Screen use will no longer be limited to weather conditions.
Outdoor P2.6-5.2 Transparent LED Poster Screen Advertising Product Parameters
| Item | Parameters |
|---|---|
| Pixel pitch | 2.6-5.2mm |
| LED Type | SMD1415 1R1G1B |
| LED Module Size | 250 x 250mm |
| LED Module Resolution | 96 x 96 dots |
| LED Cabinet Size | 750x250x30mm |
| Cabinet Resolution | 144 x 96 dots |
| Screen Pixel | 13,824 dots |
| Signal Processing | 12 – 16 bit |
| Grey Level | 4096 – 65536 |
| Refresh Rate | > 2880Hz |
| Scan Mode | 1/11 |
| Brightness | >5,500 nits |
| Viewing Distance | > 2.6m |
| Viewing Angle | 160 degree |
| Input Voltage | 12-24V |
| Max Consumption | 750W/SQ.M |
| Ave Consumption | 225W/SQ.M |
| Working Temperature | -20 degree to 45 degree |
| Storage Temperature | -40 degree to 60 degree |
| IP Rate | IP43 |
| Working Humidity | 10% – 60% |
| Storage Humidity | 10% – 90% |
| Lifespan | 100,000 hours |
| Service Type | Front & Rear Service |
| LED Lamp | NationStar |
| IC | ICN2153 |
| Control Card | NovaStar TB1 |
| Operation Approach | App/USD/WIFI |
| Carton Package | 93x24x11cm |
| Total Weight | 7KGS |
