-High precision die casting aluminum alloy housing,7.3 /15kg per panel.

-Cable-less design, quick replacing for power box, saving time.

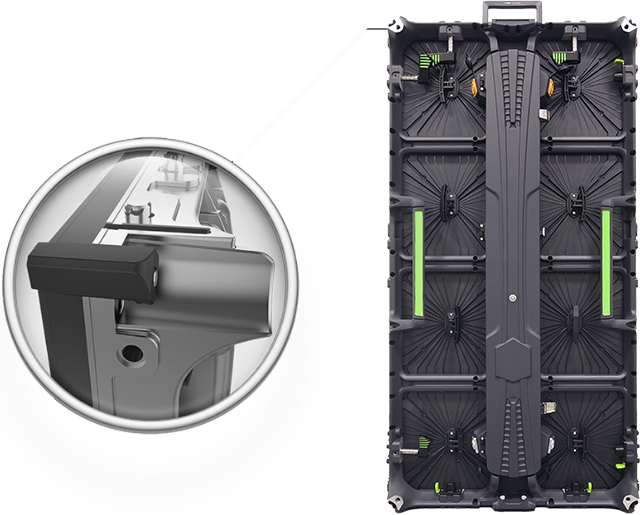

-Anti-Collision on four corners. Protect the led lamp not to be damaged. Easy for operation.

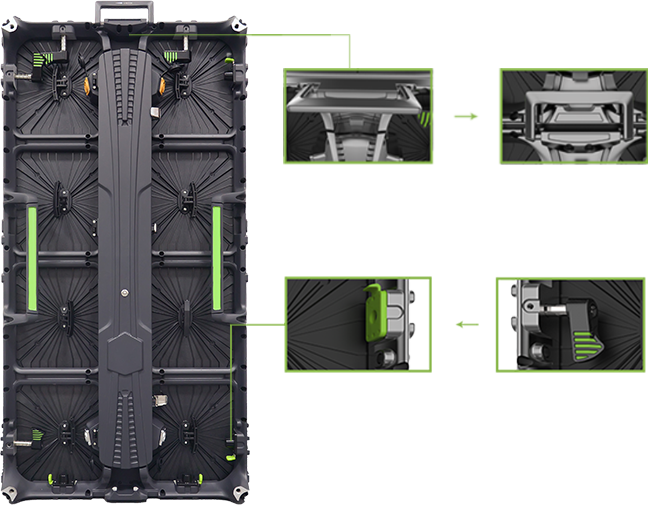

-Dual fast locks to ensure the panels evenness and anti-drop handle to protect cabinets dropping when doing events .

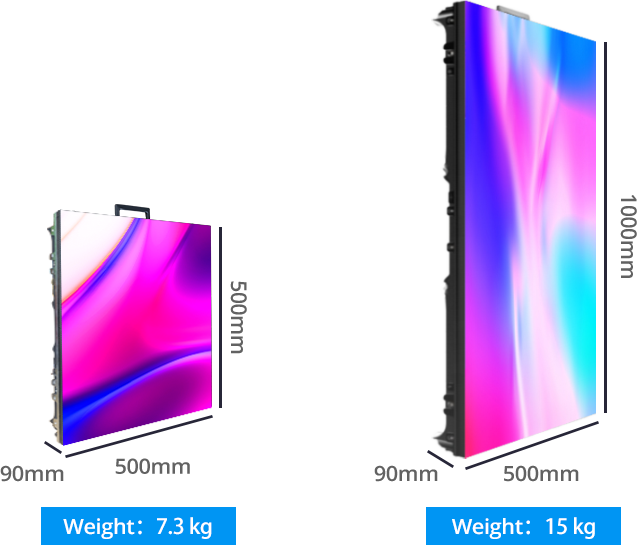

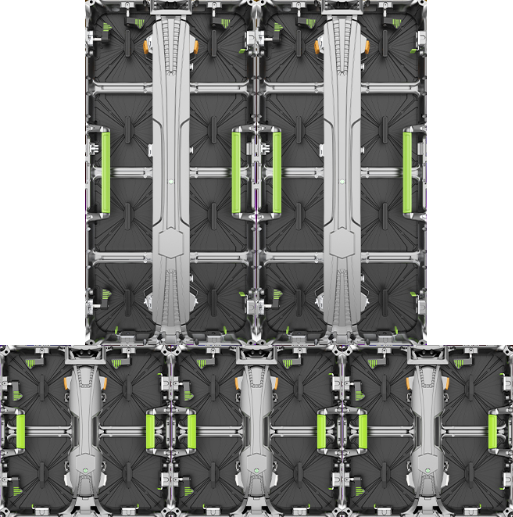

– 500*500mm and 500*1000mm cabinets can be easily spliced up and down,greatly satisfying different needs of stage design .

Model	LM-C261(Indoor P2.6 )	LM-C391(Indoor P3.91)
Pixel Pitch (mm)	2.604mm	3.91mm
Brightness（nits）	1000	1000
Refresh Rate（hz）	3840	3840
Cabinet Size(mm)	500*500	500500/5001000
Cabinet weight(kg)	7.5	7.3/15
Cabinet Material	Die Casting Aluminum
Power Consumption (Max/Aver.)w/㎡	400/120	400/120
Cabinet Resolution Pixels	108*108	128128/128256
Pixel Density Pixels(㎡)	147929	65410
Signal Type(with video processor)	AV,S-Video,VGA,DVI,HDMI,SDI,DP
Note: For more product materials, please contact us directly.
