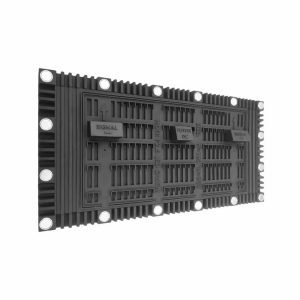

Outdoor Flexible LED Display Module 320x160mm
P4 Flexible Outdoor led module
P4 Flexible Outdoor led module
P3.076 Flexible Outdoor led module
P2.5 Flexible Outdoor led module
Standardized Size Design 320X160mm LED Module
IP65 Waterproof, Outdoor is Available
High Flexibility, High Brightness, High Refresh
Support Front & Rear Maintenance/Installation
Protective mask, Dustproof and Anti-reflective
Anti-fall Safety Rope Improves Safety Level

Waterproofing & Safety:
The module is rated as *P65 waterproof, making it suitable for direct outdoor use. This is achieved through a silicon-based design that covers both the front LED surface and the backside with black silicon gel.
Both power and data interfaces are encapsulated in silicon, further enhancing the waterproof capabilities.
When setting up, it’s important to ensure that the controller systems are placed in a dry location or protected in a waterproof box. If not already waterproof, the power supply should be switched to a type that is.
Importance: Waterproofing and safety are paramount. Given that these displays are for outdoor use, they must withstand various weather conditions without malfunctioning. Any compromise on these aspects can lead to unforeseeable consequences.

Flexibility:
Outdoor LED flexible display modules come in two general specifications: standard and shaped (customized).
Before finalizing a product design, clients typically test standard samples to gauge the flexibility and performance of the module.
Importance: Flexibility is crucial to cater to unique design requirements and create eye-catching displays in various shapes.

Tolerance Requirements:
LED display products, especially flexible ones, need to consider not just display and design aspects but also the overall physical and mechanical factors.

The production process involves PCB design, bottom shell molding, and arrangement of electronic components. Hence, if manufacturing these modules is based on a specific design, the tolerance of the final product (i.e., how much it can vary from the intended design) should be taken into account.

Outdoor LED soft modules have a maximum curvature of 3.2 meters due to flexibility limitations. By joining 10pcs 320x160mm modules, a circle of about 1.1 meters in diameter can be formed, offering versatility and easier maintenance.

Importance: Ensuring the module aligns closely with the design specifications guarantees consistent

Excellent Visual Effect
New arrivals p4mm outdoor soft led module size is 320x160mm. It adopts cell design with extreme visual beauty. The tyre texture increases the shaping force of the product and the fit with the cabinet, effectively improving the flatness and use effect of the screen.

High Waterproof & Dustproof
Soft sealed silicon rear cover get IP65 waterproof and high dustproof level. Special waterproof design of interfaces increase interfaces’ safety.

Better High Flexibility
Leeman P2mm P2.5mm P3mm P4mm P5mm P6mm P8mm P10mm outdoor soft flexible led module support concave and convex designs. The module can curve at large angle. Better flexibility, high brightness, and 3840Hz high refresh rate support diversified outdoor designs.

Anti-corrosion & Anti-dropping
Adjustable magnet kits enhances entire evenness. The magnets has passed the 48-hour salt spray anti-corrosion test. Extra protective safety rope add for safety: tough steel rope resistant to twist and turns, double protection. Steel rope connects cabinet and modules to prevent accidental drops.

Outdoor Flexible LED Module Applications
Outdoor flexible led screen modules are mainly used in: outdoor central squares, exhibition venues, high-end shopping malls, airport stations, and other public places and many other media release and display places.
